Windows

  • Excellent performance for profiles with installation depths from 70 to 82 mm

  • Competitive solution

  • Focused product range

  • Maximum compatibility with existing systems

Schüco FocusIng Features

  • The new PVC system is available in variants with two seals

  • Slim profiles provide a modern appearance with an aluminium-style look

  • The system offers excellent thermal insulation combined with a narrow visible profile width

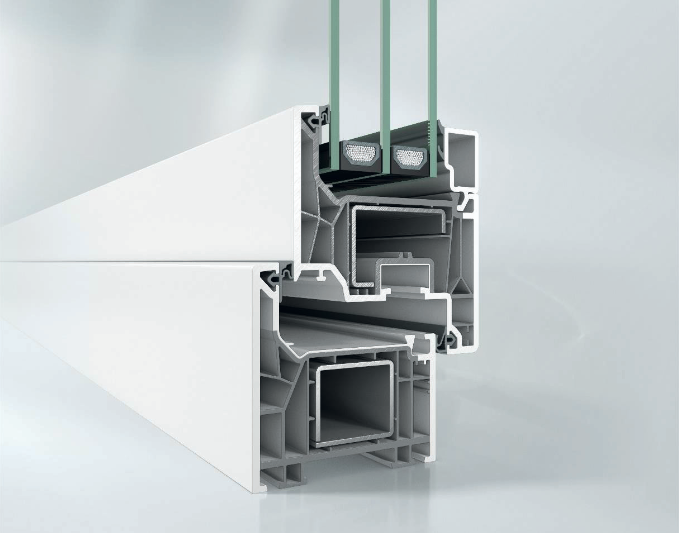

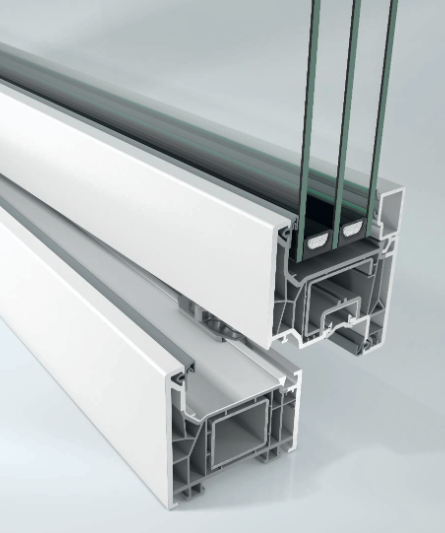

  • 5/6-chamber profile construction with optimised chamber geometry

  • Ideally suited for insulated glazing units

Technical System Specifications

  • Frame installation depth: 70 mm

  • Sash installation depth: 76 mm

  • Glass thickness from 20 mm

  • Standard weld height: 3 mm

  • System design based on Schüco LivIng

  • Additional profiles compatible with the CT 70 system

  • Modular concept similar to Schüco LivIng

  • Profiles with a recycled material core

Functional Safety

  • Wall thicknesses compliant with RAL-GZ/716 and EN 12608 (Class B)

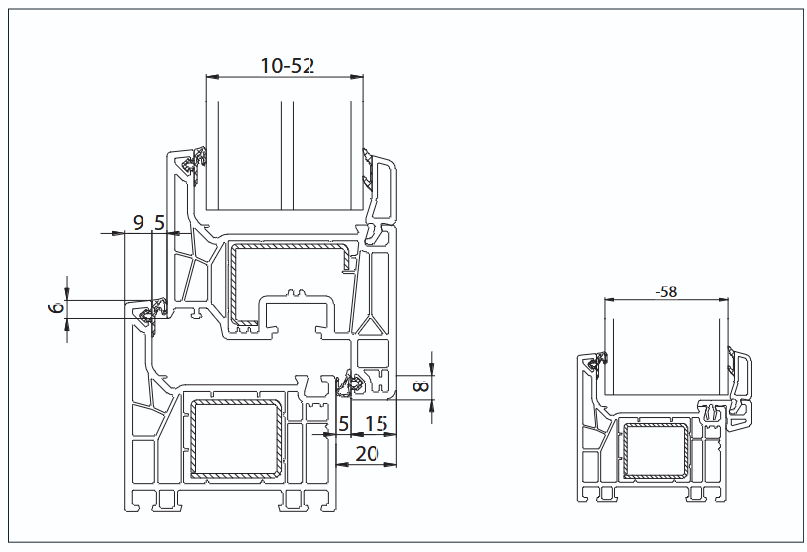

  • Sash clearance: 6 mm externally and 8 mm internally

Glazing Options

  • Sash glazing: 10–52 mm

  • Fixed glazing up to 46 mm

  • Fixed glazing with new seal up to 58 mm
